The SZJ series of safety light curtains are extremely cost-effective and are the perfect solution for hazardous point protection and one-sided access protection, helping users to easily achieve safety protection from start to finish.
The combination of safety and efficiency - the most practical
In all industries, the cost-effective SZ series of safety light curtains guarantee the safety of personnel and machines and systems (such as those used in processing machines of various sizes).

■ Machine tool industry
■ Press industry
■ Automotive industry
■ Fixture equipment
■ Handling and storage system
■ Welding equipment
■ Consumer goods and packaging industry
■ Regional protection
■ Test equipment
■ Food manufacturing
■ Electronic equipment industry
■ Thermoforming machine industry
■ Medical equipment industry
■ Robot manufacturing industry

■ Level 2 security protection
■ No blind zone / blind zone Optional
■ Resolution: 10/15/20/30/40/60 mm
■ Protection zone height: 60 mm to 2000 mm
■ Automatic range measurement of protection zone width up to 5m
■ Ambient operating temperature: –30°C to +65°C
■ Enclosure protection rating: IP 65
■ M12 aviation plug

SZJ basic safety light curtain is widely used in various safety applications

For extremely limited space: continuous protection zone
The SZJ series of safety light curtains form a high-resolution continuous protection zone that covers the entire enclosure up to the end of the enclosure, minimizing the safety distance required for machine integration. In addition, the SZJ series safety light curtains have a protection area of up to 3 mm. As a result, the product allows distances above and below the safe area to be much smaller than existing safety standards. The SZJ series of safety light curtains also reduce the safety distance between the operator and the danger point, effectively increasing production efficiency.

Sturdy casing: SZJ series safety light curtains are made of high-strength aluminum profiles, which ensure the safety light curtain is resistant to bending and impact.
Power-on: No security is required without any setup, and work and troubleshooting are fast.
Quick commissioning with LED indicators: The SZJ series of safety light curtains do not require pre-configuration to perform all basic functions and require no software to complete the commissioning process. In addition, some models are equipped with integrated LED indicators and diagnostics, which effectively reduces commissioning time.
Plug-and-play maintenance and replacement: The SZJ Series Safety Light Curtains require quick maintenance without configuration or wiring. All products feature an exquisite bracket design and standardized M12-4 pin plug technology, simplifying the replacement process for each device. In addition, bright LEDs continuously provide status information for all processes.

Safety light curtain installation instructions

Note: The installation position refers to the position of the safety light curtain relative to the upper and lower die of the machine. That is, under the premise of ensuring the safety distance, the last light of the safety light curtain shall not be higher than the lower edge of the lower die, and the upper beam shall not be allowed. Below the upper edge of the upper die. This involves the safety light curtain protection height

Calculation of safety distance
In order to ensure the operator's personal safety, the installation position of the safety light curtain must meet the requirements of the safety distance. Otherwise, there is still the possibility of an accident.
■ Safety distance refers to the minimum distance between the light curtain and the cutting edge of the die. The calculation method should be calculated according to the formula of the brake method of the press, or refer to the following table.
■ For presses where the slider can be braked at any position of the stroke, the safety distance:
Ds=1.6(T1+T2)
Where: Ds - safety distance, in meters (m)
          1.6 - Stretching speed of the hand, in meters per second (m/s)
          T1 - response time of safety light curtain, 0.02 seconds (s)
          T2——The braking time of the equipment, that is, the time from the start of braking to the stop of the slider, in seconds (s), measured from the actual braking condition
■ For presses where the slider cannot be braked at any position of the stroke, the safety distance:
Ds=1.6Ts
Where: Ds - safety distance, in meters (m)
          1.6 - Stretching speed of the hand, in meters per second (m/s)
Ts - the time from when the person leaves the light curtain (that is, the slider is allowed to start) until the device slider reaches the bottom dead center, that is, the down travel time of the slider, in seconds (s), can be calculated according to the following formula or actually measured:
Ts=(1/2+1/N)T
Where: N - the number of engagement slots of the clutch
          Tn - the time the crankshaft makes one revolution, in seconds (s)

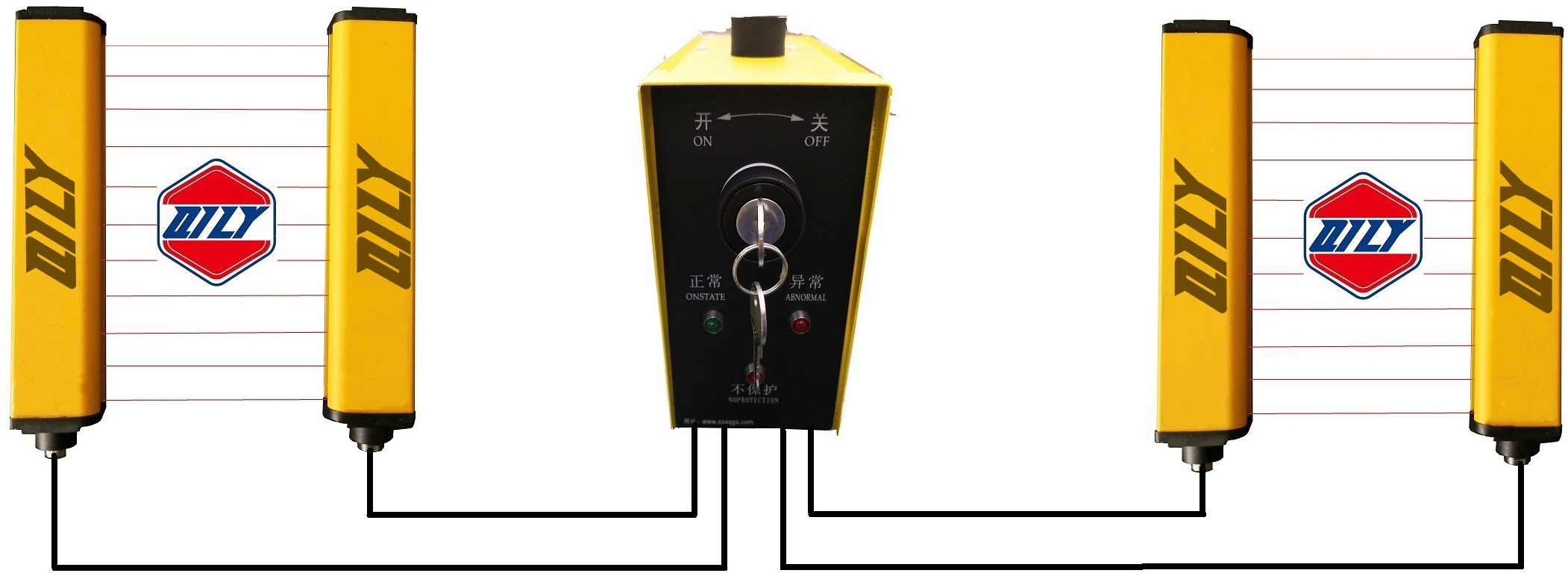

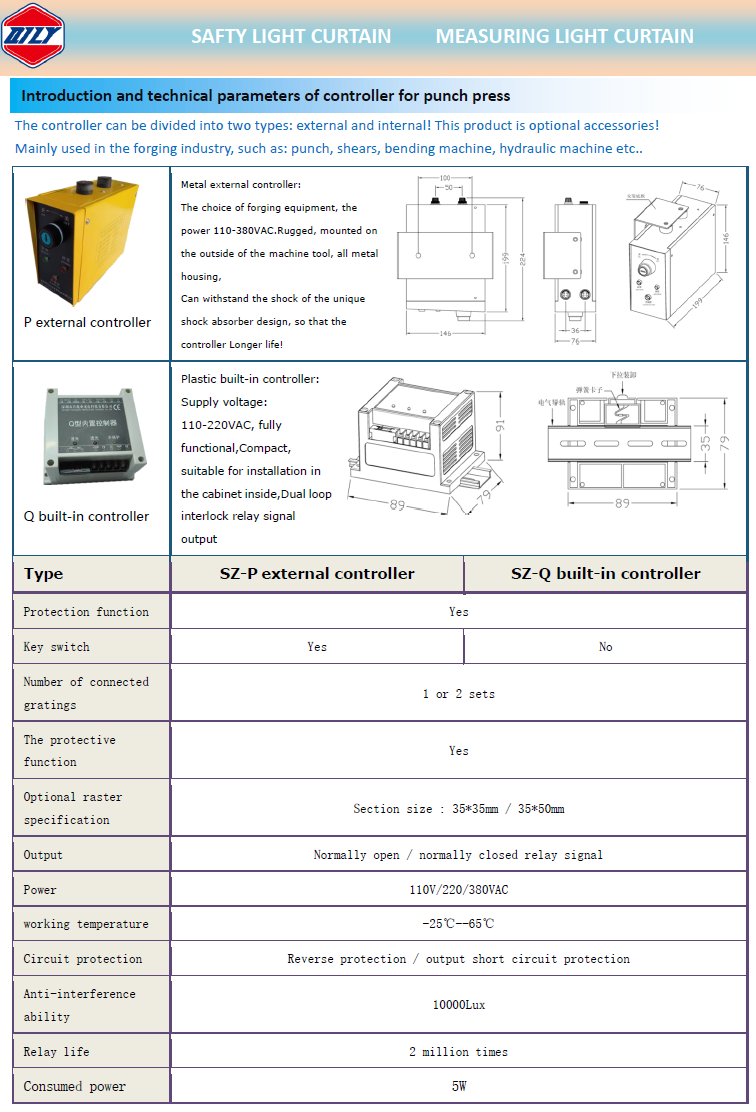

Product picture
Light curtain type	SZJ
Section size	35*50 mm
Enclosure rating	IP65
Supply voltage	DC12V-36V±10%
Response time	≤10ms
Signal output	NPN/PNP/Relay
Synchronization type	Optical synchronization / line synchronization
Number of beams	4-500bundle
Optical axis spacing	10mm/15mm/20mm/30mm/40mm/60mm
Protection height	60-2000mm
Protection distance	0.1-10 m or more (selection note)
Light curtain form	Opposite type
Anti-interference ability	10000Lux
Shape material	Aluminum alloy
Circuit protection	Reverse protection / output short circuit protection
Power consumption	3-8W
Operating temperature	-15℃--65℃
Ambient temperature	20C,RH≤85%
Dielectric strength	DC30V.5A
Insulation resistance	＞100 MΩ
certified product	CE  ROHS
