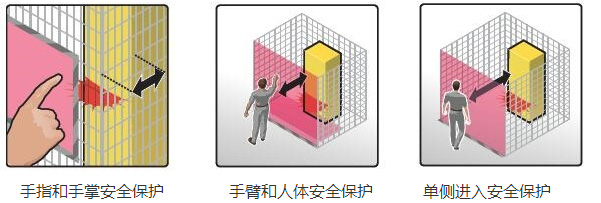

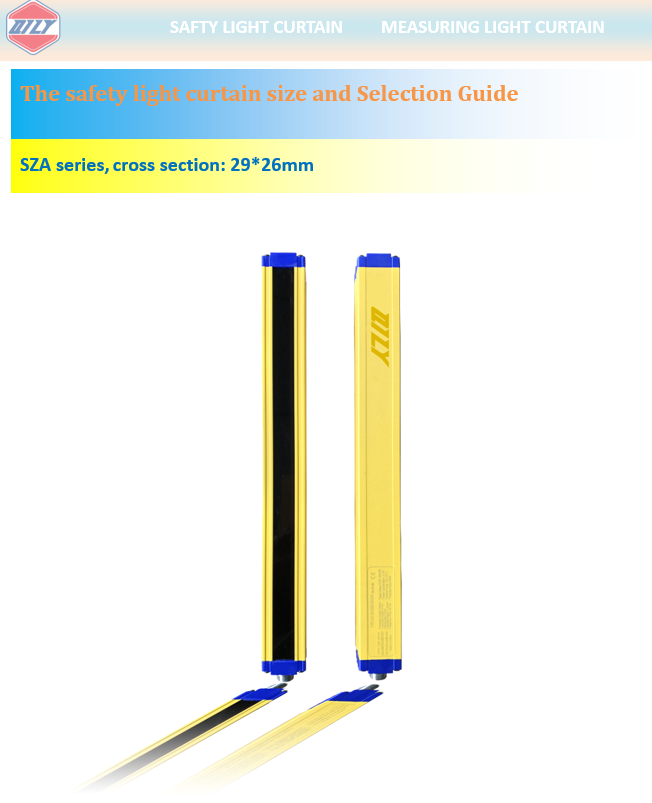

The SZA series of safety light curtains are extremely cost-effective and are the perfect solution for hazardous point protection and one-sided access protection, helping users to easily achieve safety protection from start to finish. The combination of safety and efficiency - the most practical In all industries, the cost-effective SZ series of safety light curtains guarantee the safety of personnel and machines and systems (such as those used in processing machines of various sizes).

■ Machine tool industry
■ Press industry
■ Automotive industry
■ Fixture equipment
■ Handling and storage systems
■ Welding equipment
■ Consumer goods and packaging industry
■ Regional protection
■ Test Equipment
■ Food Manufacturing
■ Electronic equipment industry
■ Thermoforming machine industry
■ Medical equipment industry
■ Robot manufacturing industry

■ Level 2 Security
■ No blind zone / blind zone Optional

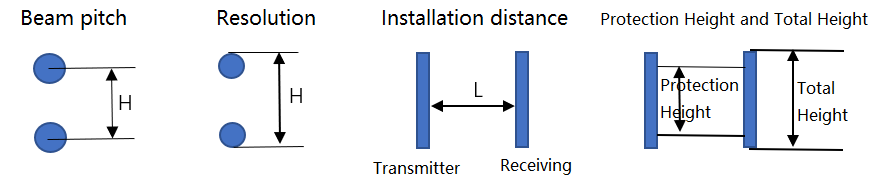

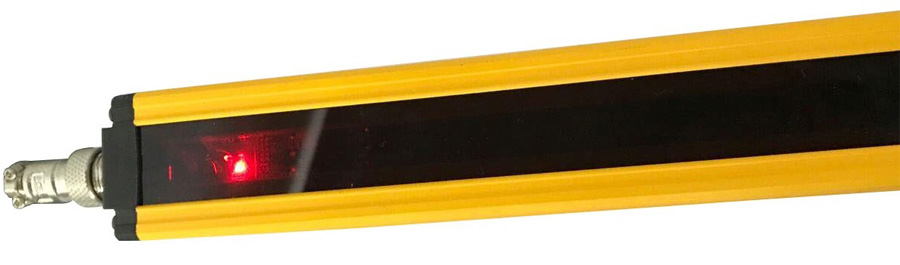

■ Resolution: 10/15/20/30/40/60 mm
■ Protection zone height: 60 mm to 2000 mm
■ Automatic range measurement in the width of the protection area up to 5m
■ Ambient operating temperature: –30°C to +65°C
■ Shell protection rating: IP 65
■ M12 aviation plug

Note: The installation position refers to the position of the safety light curtain relative to the upper and lower die of the machine. That is, under the premise of ensuring the safety distance, the last light of the safety light curtain shall not be higher than the lower edge of the lower die, and the upper beam shall not be allowed. Below the upper edge of the upper die. This involves the safety light curtain protection height

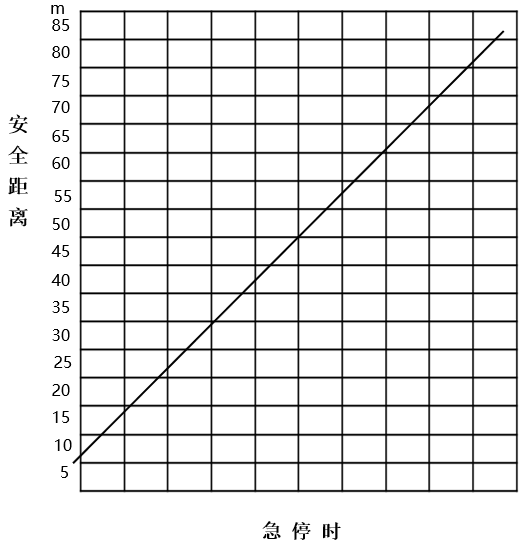

Calculation of safety distance
In order to ensure the operator's personal safety, the installation position of the safety light curtain must meet the requirements of the safety distance. Otherwise, there is still the possibility of an accident.
■ Safety distance refers to the minimum distance between the light curtain and the cutting edge of the mold. The calculation method should be calculated according to the formula of the pressing method of the press, or refer to the following table.
■ Safety distance for the press where the slider can be braked at any position of the stroke:
Ds=1.6(T1+T2)
Where: Ds - safety distance, in meters (m)
1.6——The stretching speed of the human hand, in meters per second (m/s)
T1 - response time of safety light curtain, 0.02 seconds (s)
T2——The braking time of the equipment, that is, the time from the start of braking to the stop of the slider, in seconds (s), measured from the actual braking situation
■ Safety distance for a press where the slider cannot be stopped at any position of the stroke:
Ds=1.6Ts
Where: Ds - safety distance, in meters (m)
1.6——The stretching speed of the human hand, in meters per second (m/s)
Ts - the time from when the person leaves the light curtain (that is, the slider is allowed to start) until the device slider reaches the bottom dead center, that is, the down travel time of the slider, in seconds (s), can be calculated according to the following formula or actual measurement: ;
Ts=(1/2+1/N)T
Where: N - the number of engagement slots of the clutch
Tn——the time of one revolution of the crankshaft, in seconds (s)

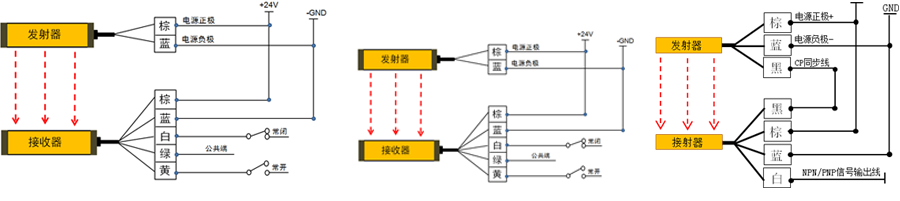

Optical Synchronous Wiring Mode                                                     Wire Synchronous Wiring Methods                                    Wiring method

Output form	Light curtain state	Receiver indicator	Output transistor state
NPNtype	Pass light	Bright green light	ON	0.3WOutput level≤1V
	Shading	Bright red light	OFF	OPENLeakage current≤2mA
	malfunction	Flashing red light	OFF	OPENLeakage current≤2mA
PNPtype	Pass light	Bright green light	ON	0.3W   Output level≤1V
	Shading	Bright red light	OFF	OPEN,DO0V Ground resistance10K
	malfunction	Flashing red light	OFF	OPEN,DO0V Ground resistance10K

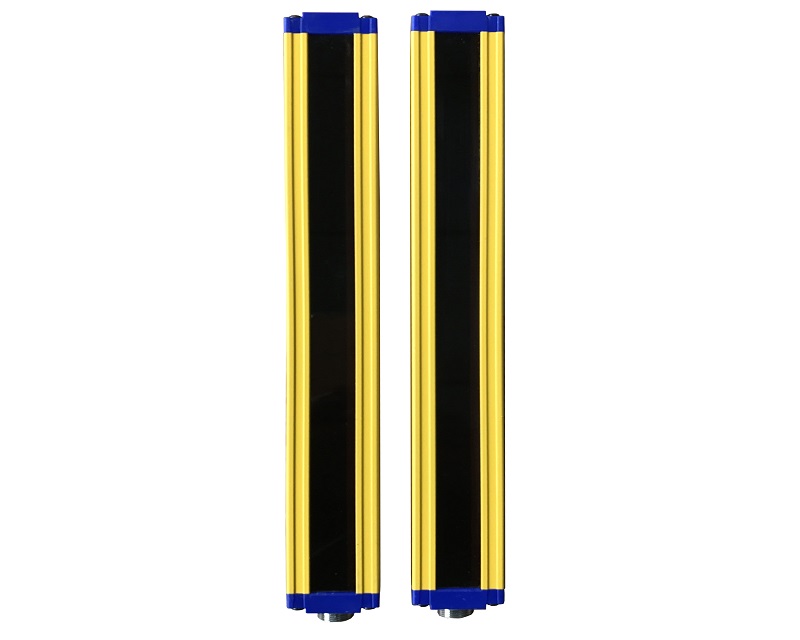

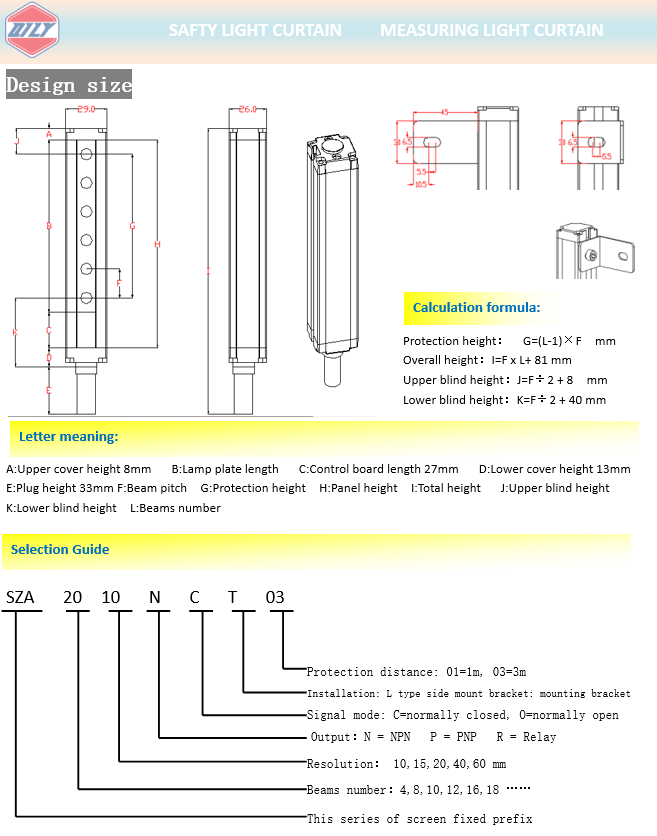

Product picture

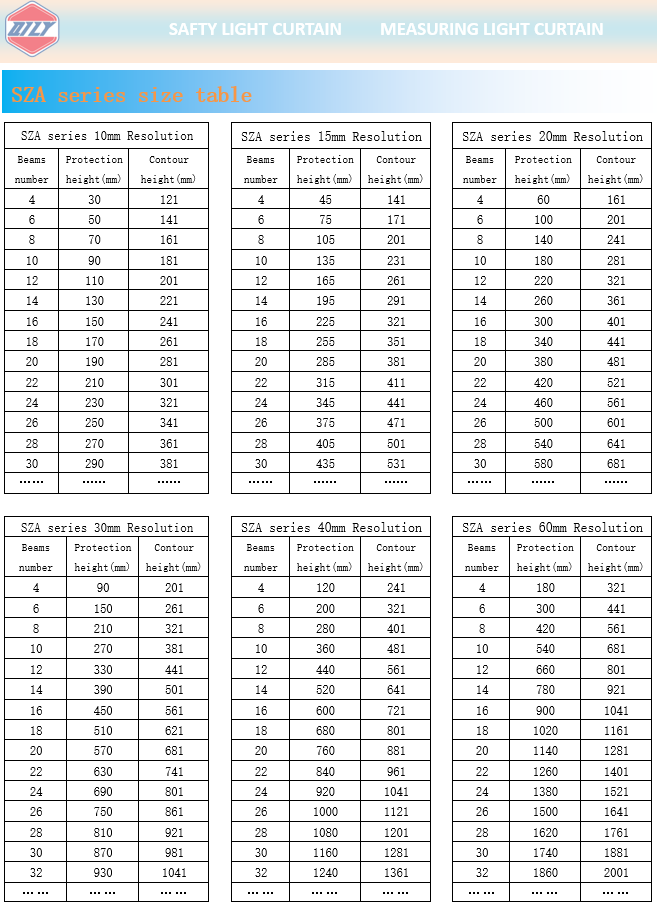

Light curtain type	SZA
Section size	29*26mm
Enclosure rating	IP65
Supply voltage	DC12V-36V±10%
Response time	≤10ms
Signal output	NPN/PNP/Relay
Synchronization type	Optical synchronization/Line synchronization
Number of beams	4-500bundle
Optical axis spacing	10mm/15mm/20mm/30mm/40mm/60mm
Protection height	60-2000mm
Protection distance	0.1-1m  1-3m
Light curtain form	Opposite type
Anti-interference ability	10000Lux
Shape material	Aluminum alloy
Circuit protection	Reverse protection/Output short circuit protection
Power consumption	3-8W
Operating temperature	-15℃--65℃
Ambient temperature	20C,RH≤85%
Dielectric strength	DC30V.5A
Insulation resistance	＞100 MΩ
certified product	CE  ROHS
